Circuit¶
SAX Circuits
import gdsfactory as gf
import sax
from sax.circuits import (
_create_dag,
_find_leaves,
_find_root,
_flat_circuit,
_validate_models,
draw_dag,
)

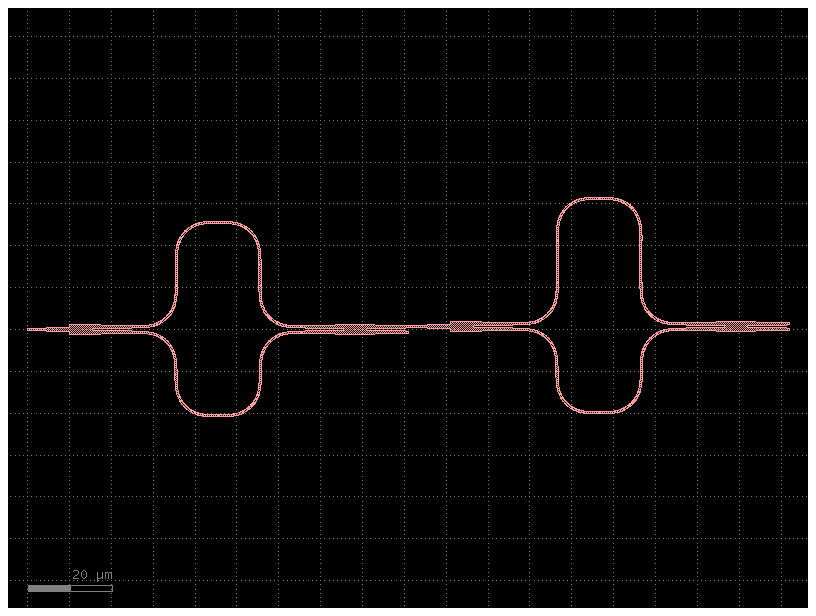

Let's start by creating a simple recursive netlist with gdsfactory.
NOTE: We are using gdsfactory to create our netlist because it allows us to see the circuit we want to simulate and because we're striving to have a compatible netlist implementation in SAX.
However... gdsfactory is not a dependency of SAX. You can also define your circuits by hand (see SAX Quick Start Notebook) or you can use another tool to programmatically construct your netlists.
@gf.cell
def mzi(delta_length=10.0):
c = gf.Component()
# components
mmi_in = gf.components.mmi1x2()
mmi_out = gf.components.mmi2x2()
bend = gf.components.bend_euler()
half_delay_straight = gf.components.straight(length=delta_length / 2.0)
# references
mmi_in = c.add_ref(mmi_in, name="mmi_in")
mmi_out = c.add_ref(mmi_out, name="mmi_out")
straight_top1 = c.add_ref(half_delay_straight, name="straight_top1")
straight_top2 = c.add_ref(half_delay_straight, name="straight_top2")
bend_top1 = c.add_ref(bend, name="bend_top1")
bend_top2 = c.add_ref(bend, name="bend_top2").dmirror()
bend_top3 = c.add_ref(bend, name="bend_top3").dmirror()
bend_top4 = c.add_ref(bend, name="bend_top4")
bend_btm1 = c.add_ref(bend, name="bend_btm1").dmirror()
bend_btm2 = c.add_ref(bend, name="bend_btm2")
bend_btm3 = c.add_ref(bend, name="bend_btm3")
bend_btm4 = c.add_ref(bend, name="bend_btm4").dmirror()
# connections
bend_top1.connect("o1", mmi_in.ports["o2"])
straight_top1.connect("o1", bend_top1.ports["o2"])
bend_top2.connect("o1", straight_top1.ports["o2"])
bend_top3.connect("o1", bend_top2.ports["o2"])
straight_top2.connect("o1", bend_top3.ports["o2"])
bend_top4.connect("o1", straight_top2.ports["o2"])
bend_btm1.connect("o1", mmi_in.ports["o3"])
bend_btm2.connect("o1", bend_btm1.ports["o2"])
bend_btm3.connect("o1", bend_btm2.ports["o2"])
bend_btm4.connect("o1", bend_btm3.ports["o2"])
mmi_out.connect("o1", bend_btm4.ports["o2"])
# ports
c.add_port(
"o1",
port=mmi_in.ports["o1"],
)
c.add_port("o2", port=mmi_out.ports["o3"])
c.add_port("o3", port=mmi_out.ports["o4"])
return c
@gf.cell
def twomzi():
c = gf.Component()
# instances
mzi1 = mzi(delta_length=10)
mzi2 = mzi(delta_length=20)
# references
mzi1_ = c.add_ref(mzi1, name="mzi1")
mzi2_ = c.add_ref(mzi2, name="mzi2")
# connections
mzi2_.connect("o1", mzi1_.ports["o2"])
# ports
c.add_port("o1", port=mzi1_.ports["o1"])
c.add_port("o2", port=mzi2_.ports["o2"])
return c
recnet = sax.netlist(comp.get_netlist(recursive=True))
mzi1_comp = recnet["twomzi"]["instances"]["mzi1"]["component"]
flatnet = recnet[mzi1_comp]
To be able to model this device we'll need some SAX dummy models:
def bend_euler(
angle=90.0,
p=0.5,
# cross_section="strip",
# direction="ccw",
# with_bbox=True,
# with_arc_floorplan=True,
# npoints=720,
):
return sax.reciprocal({("o1", "o2"): 1.0})
def mmi1x2(
width=0.5,
width_taper=1.0,
length_taper=10.0,
length_mmi=5.5,
width_mmi=2.5,
gap_mmi=0.25,
# cross_section= strip,
# taper= {function= taper},
# with_bbox= True,
):
return sax.reciprocal(
{
("o1", "o2"): 0.45**0.5,
("o1", "o3"): 0.45**0.5,
}
)
def mmi2x2(
width=0.5,
width_taper=1.0,
length_taper=10.0,
length_mmi=5.5,
width_mmi=2.5,
gap_mmi=0.25,
# cross_section= strip,
# taper= {function= taper},
# with_bbox= True,
):
return sax.reciprocal(
{
("o1", "o3"): 0.45**0.5,
("o1", "o4"): 1j * 0.45**0.5,
("o2", "o3"): 1j * 0.45**0.5,
("o2", "o4"): 0.45**0.5,
}
)
def straight(
length=0.01,
# npoints=2,
# with_bbox=True,
# cross_section=...
):
return sax.reciprocal({("o1", "o2"): 1.0})
In SAX, we usually aggregate the available models in a models dictionary:
We can also create some dummy multimode models:
def bend_euler_mm(
angle=90.0,
p=0.5,
# cross_section="strip",
# direction="ccw",
# with_bbox=True,
# with_arc_floorplan=True,
# npoints=720,
):
return sax.reciprocal(
{
("o1@TE", "o2@TE"): 0.9**0.5,
# ('o1@TE', 'o2@TM'): 0.01**0.5,
# ('o1@TM', 'o2@TE'): 0.01**0.5,
("o1@TM", "o2@TM"): 0.8**0.5,
}
)
def mmi1x2_mm(
width=0.5,
width_taper=1.0,
length_taper=10.0,
length_mmi=5.5,
width_mmi=2.5,
gap_mmi=0.25,
# cross_section= strip,
# taper= {function= taper},
# with_bbox= True,
):
return sax.reciprocal(
{
("o1@TE", "o2@TE"): 0.45**0.5,
("o1@TE", "o3@TE"): 0.45**0.5,
("o1@TM", "o2@TM"): 0.41**0.5,
("o1@TM", "o3@TM"): 0.41**0.5,
("o1@TE", "o2@TM"): 0.01**0.5,
("o1@TM", "o2@TE"): 0.01**0.5,
("o1@TE", "o3@TM"): 0.02**0.5,
("o1@TM", "o3@TE"): 0.02**0.5,
}
)
def mmi2x2_mm(
width=0.5,
width_taper=1.0,
length_taper=10.0,
length_mmi=5.5,
width_mmi=2.5,
gap_mmi=0.25,
# cross_section= strip,
# taper= {function= taper},
# with_bbox= True,
):
return sax.reciprocal(
{
("o1@TE", "o3@TE"): 0.45**0.5,
("o1@TE", "o4@TE"): 1j * 0.45**0.5,
("o2@TE", "o3@TE"): 1j * 0.45**0.5,
("o2@TE", "o4@TE"): 0.45**0.5,
("o1@TM", "o3@TM"): 0.45**0.5,
("o1@TM", "o4@TM"): 1j * 0.45**0.5,
("o2@TM", "o3@TM"): 1j * 0.45**0.5,
("o2@TM", "o4@TM"): 0.45**0.5,
}
)
def straight_mm(
length=0.01,
# npoints=2,
# with_bbox=True,
# cross_section=...
):
return sax.reciprocal(
{
("o1@TE", "o2@TE"): 1.0,
("o1@TM", "o2@TM"): 1.0,
}
)
models_mm = {
"straight": straight_mm,
"bend_euler": bend_euler_mm,
"mmi1x2": mmi1x2_mm,
"mmi2x2": mmi2x2_mm,
}

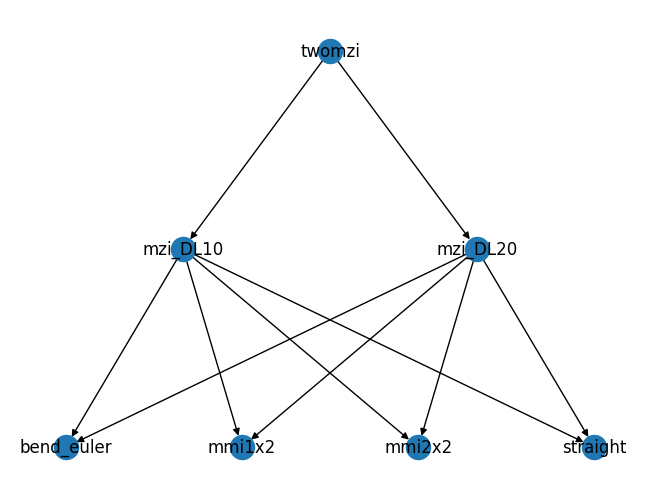

We can now represent our recursive netlist model as a Directed Acyclic Graph:

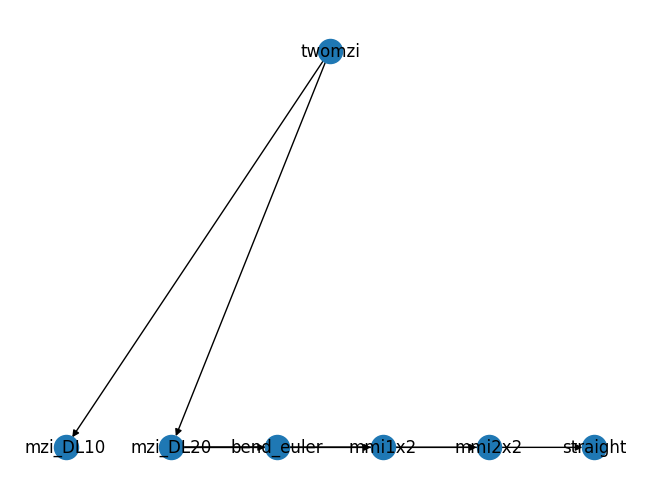

Note that the DAG depends on the models we supply. We could for example stub one of the sub-netlists by a pre-defined model:
This is useful if we for example pre-calculated a certain model.
We can easily find the root of the DAG:
['twomzi']
Similarly we can find the leaves:
['bend_euler', 'mmi1x2', 'mmi2x2', 'straight']
To be able to simulate the circuit, we need to supply a model for each of the leaves in the dependency DAG. Let's write a validator that checks this
{'straight': <function __main__.straight(length=0.01)>,
'bend_euler': <function __main__.bend_euler(angle=90.0, p=0.5)>,
'mmi1x2': <function __main__.mmi1x2(width=0.5, width_taper=1.0, length_taper=10.0, length_mmi=5.5, width_mmi=2.5, gap_mmi=0.25)>,
'mmi2x2': <function __main__.mmi2x2(width=0.5, width_taper=1.0, length_taper=10.0, length_mmi=5.5, width_mmi=2.5, gap_mmi=0.25)>}
We can now dow a bottom-up simulation. Since at the bottom of the DAG, our circuit is always flat (i.e. not hierarchical) we can implement a minimal _flat_circuit definition, which only needs to work on a flat (non-hierarchical circuit):
from sax.netlists import convert_nets_to_connections
flatnet = convert_nets_to_connections(recnet[mzi1_comp])
single_mzi = _flat_circuit(
flatnet["instances"],
flatnet["connections"],
flatnet["ports"],
models,
"klu",
)
single_mzi()
(Array([[0. +0.j , 0.45+0.45j, 0.45+0.45j],
[0.45+0.45j, 0. +0.j , 0. +0.j ],
[0.45+0.45j, 0. +0.j , 0. +0.j ]], dtype=complex128),
{'o1': 0, 'o2': 1, 'o3': 2})
The resulting circuit is just another SAX model (i.e. a python function) returing an SType:
Let's 'execute' the circuit:
Note that we can also supply multimode models:
flatnet = convert_nets_to_connections(recnet[mzi1_comp])
single_mzi = _flat_circuit(
flatnet["instances"],
flatnet["connections"],
flatnet["ports"],
models_mm,
"klu",
)
single_mzi()
(Array([[0. +0.j , 0. +0.j ,
0.3645 +0.3645j , 0.06071573+0.04293251j,
0.3645 +0.3645j , 0.04293251+0.06071573j],
[0. +0.j , 0. +0.j ,
0.07684335+0.05433645j, 0.27490216+0.27490216j,
0.05433645+0.07684335j, 0.27490216+0.27490216j],
[0.3645 +0.3645j , 0.07684335+0.05433645j,
0. +0.j , 0. +0.j ,
0. +0.j , 0. +0.j ],
[0.06071573+0.04293251j, 0.27490216+0.27490216j,
0. +0.j , 0. +0.j ,
0. +0.j , 0. +0.j ],
[0.3645 +0.3645j , 0.05433645+0.07684335j,
0. +0.j , 0. +0.j ,
0. +0.j , 0. +0.j ],
[0.04293251+0.06071573j, 0.27490216+0.27490216j,
0. +0.j , 0. +0.j ,
0. +0.j , 0. +0.j ]], dtype=complex128),
{'o1@TE': 0, 'o1@TM': 1, 'o2@TE': 2, 'o2@TM': 3, 'o3@TE': 4, 'o3@TM': 5})
Now that we can handle flat circuits the extension to hierarchical circuits is not so difficult:
single mode simulation:
{('o1', 'o1'): Array(0.+0.j, dtype=complex128),
('o1', 'o2'): Array(0.+0.405j, dtype=complex128),
('o2', 'o1'): Array(0.+0.405j, dtype=complex128),
('o2', 'o2'): Array(0.+0.j, dtype=complex128)}
multi mode simulation:
double_mzi, info = sax.circuit(
netlist=recnet, models=models_mm, backend="default", return_type="sdict"
)
double_mzi()
{('o1@TE', 'o1@TE'): Array(0.+0.j, dtype=complex128),
('o1@TE', 'o1@TM'): Array(0.+0.j, dtype=complex128),
('o1@TE', 'o2@TE'): Array(0.0023328+0.27231865j, dtype=complex128),
('o1@TE', 'o2@TM'): Array(0.01137063+0.06627291j, dtype=complex128),
('o1@TM', 'o1@TE'): Array(0.+0.j, dtype=complex128),
('o1@TM', 'o1@TM'): Array(0.+0.j, dtype=complex128),
('o1@TM', 'o2@TE'): Array(0.01439096+0.08387665j, dtype=complex128),
('o1@TM', 'o2@TM'): Array(0.0023328+0.15774055j, dtype=complex128),
('o2@TE', 'o1@TE'): Array(0.0023328+0.27231865j, dtype=complex128),
('o2@TE', 'o1@TM'): Array(0.01439096+0.08387665j, dtype=complex128),
('o2@TE', 'o2@TE'): Array(0.+0.j, dtype=complex128),
('o2@TE', 'o2@TM'): Array(0.+0.j, dtype=complex128),
('o2@TM', 'o1@TE'): Array(0.01137063+0.06627291j, dtype=complex128),
('o2@TM', 'o1@TM'): Array(0.0023328+0.15774055j, dtype=complex128),
('o2@TM', 'o2@TE'): Array(0.+0.j, dtype=complex128),
('o2@TM', 'o2@TM'): Array(0.+0.j, dtype=complex128)}
sometimes it's useful to get the required circuit model names to be able to create the circuit:
['mmi1x2', 'mmi2x2']
