Surface Models¶
Let's build some analytical surface models using MEOW and SAX
import json
from hashlib import md5
from pathlib import Path
import jax.numpy as jnp
import matplotlib.pyplot as plt
import meow as mw
import numpy as np
import pandas as pd
import xarray as xr
from tqdm.notebook import tqdm
import sax
Silicon Refractive index¶
Let's create a rudimentary silicon refractive index model:
Warning
This refractive index model is not based on realistical data.
def silicon_index(wl, T):
"""A rudimentary silicon refractive index model with temperature dependence"""
a, b = 0.2411478522088102, 3.3229394315868976
dn_dT = 0.00082342342 # probably exaggerated
return a / wl + b + dn_dT * (T - 25.0)

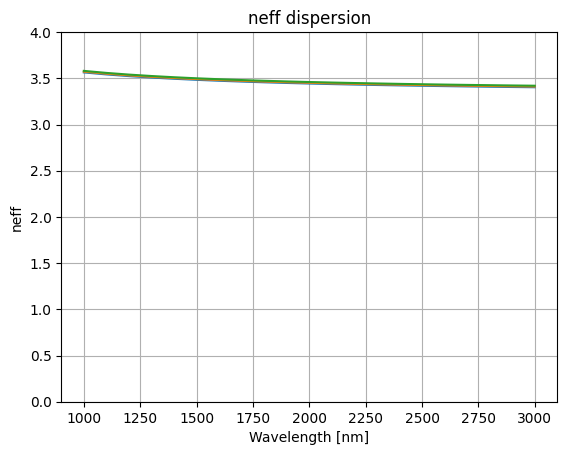

wls = np.linspace(1.0, 3.0, 21)
for T in [25.0, 35.0, 45.0]:
plt.plot(1e3 * wls, silicon_index(wls, T))
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()
Waveguide Modes¶
We can use meow to calculate the modes in our waveguide:
def find_waveguide_modes(
wl: float = 1.55,
T: float = 25.0,
n_box: float = 1.4,
n_clad: float = 1.4,
n_core: float | None = None,
t_slab: float = 0.1,
t_soi: float = 0.22,
w_core: float = 0.45,
du=0.02,
n_modes: int = 10,
cache_path: str | Path = "modes",
*,
replace_cached: bool = False,
):
length = 10.0
delta = 10 * du
env = mw.Environment(wl=wl, T=T)
if n_core is None:
n_core = silicon_index(wl, T)
cache_path = Path(cache_path).resolve()
cache_path.mkdir(exist_ok=True)
fn = f"{wl=:.2f}-{T=:.2f}-{n_box=:.2f}-{n_clad=:.2f}-{n_core=:.5f}-{t_slab=:.3f}-{t_soi=:.3f}-{w_core=:.3f}-{du=:.3f}-{n_modes=}.json"
path = cache_path / fn
if not replace_cached and path.exists():
return [mw.Mode.model_validate(mode) for mode in json.loads(path.read_text())]
# fmt: off
m_core = mw.SampledMaterial(name="slab", n=np.asarray([n_core, n_core]), params={"wl": np.asarray([1.0, 2.0])}, meta={"color": (0.9, 0, 0, 0.9)})
m_clad = mw.SampledMaterial(name="clad", n=np.asarray([n_clad, n_clad]), params={"wl": np.asarray([1.0, 2.0])})
m_box = mw.SampledMaterial(name="box", n=np.asarray([n_box, n_box]), params={"wl": np.asarray([1.0, 2.0])})
box = mw.Structure(material=m_box, geometry=mw.Box(x_min=- 2 * w_core - delta, x_max= 2 * w_core + delta, y_min=- 2 * t_soi - delta, y_max=0.0, z_min=0.0, z_max=length))
slab = mw.Structure(material=m_core, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0.0, y_max=t_slab, z_min=0.0, z_max=length))
clad = mw.Structure(material=m_clad, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0, y_max=3 * t_soi + delta, z_min=0.0, z_max=length))
core = mw.Structure(material=m_core, geometry=mw.Box(x_min=-w_core / 2, x_max=w_core / 2, y_min=0.0, y_max=t_soi, z_min=0.0, z_max=length))
cell = mw.Cell(structures=[box, clad, slab, core], mesh=mw.Mesh2D( x=np.arange(-2*w_core, 2*w_core, du), y=np.arange(-2*t_soi, 3*t_soi, du) ), z_min=0.0, z_max=10.0)
cross_section = mw.CrossSection.from_cell(cell=cell, env=env)
modes = mw.compute_modes(cross_section, num_modes=n_modes)
# fmt: on
path.write_text(json.dumps([json.loads(mode.model_dump_json()) for mode in modes]))
return modes

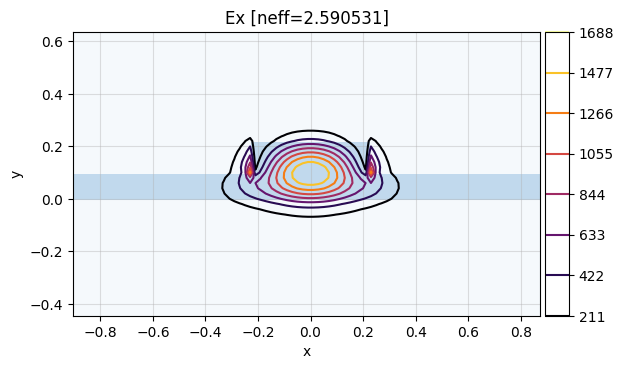

We can now easily calculate the modes of a strip waveguide:
def calculate_neffs(wls, Ts, *, replace_cached=False):
key = md5(wls.tobytes() + b"\x00" + Ts.tobytes()).hexdigest()[:8]
path = Path("modes").resolve() / f"{key}.csv"
if not replace_cached and path.exists():
return pd.read_csv(path)
neffs = np.zeros((wls.shape[0], Ts.shape[0]))
for i, wl in enumerate(pb := tqdm(wls)):
for j, T in enumerate(Ts):
pb.set_postfix(T=f"{T:.2f}C")
modes = find_waveguide_modes(wl=wl, T=T, w_core=0.5, replace_cached=False)
neffs[i, j] = np.real(modes[0].neff)
xarr = xr.DataArray(data=neffs, coords={"wl": wls, "T": Ts})
df = sax.to_df(xarr, target_name="neff")
df.to_csv(path, index=False)
return df
wls = np.linspace(1.0, 3.0, 21)
Ts = np.linspace(25, 35, 11)
df = calculate_neffs(wls, Ts, replace_cached=False)
0%| | 0/21 [00:00<?, ?it/s]

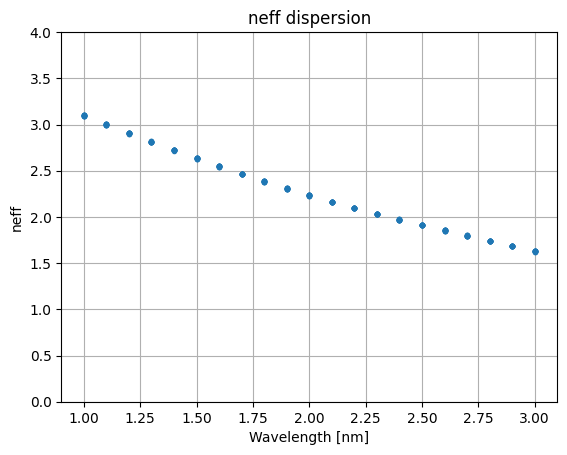

plt.plot(df.wl, df.neff, ls="none", marker=".")
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()
result = sax.fit.neural_fit(df, targets=["neff"], num_epochs=3000)
surface_model = result["predict_fn"]
0%| | 0/3000 [00:00<?, ?it/s]

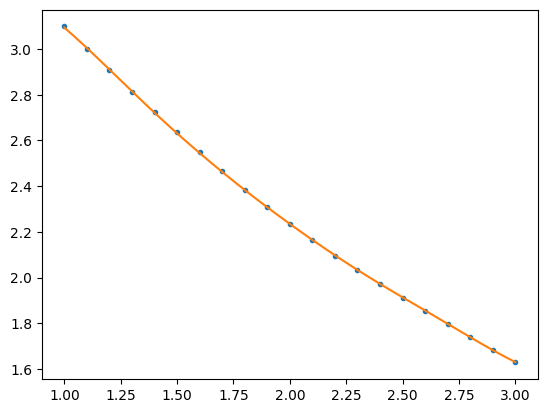

Prediction¶
T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = surface_model(jnp.stack([wl, T], axis=1))
plt.plot(wl, neff_pred)
plt.show()
Equation¶
\(\displaystyle - 0.110410401433459 \tanh{\left(- 0.600357657504306 T + 1.54715360005578 wl + 14.2374537107991 \right)} + 0.179689272617619 \tanh{\left(- 0.457454375350961 T + 1.25572670087348 wl + 10.620188722182 \right)} + 0.106318749624365 \tanh{\left(- 0.256236159848255 T + 1.67010341829345 wl + 5.12134478213462 \right)} - 0.0894625680724589 \tanh{\left(- 0.226044726286232 T + 0.789923296781523 wl + 4.70141005719755 \right)} - 0.151500001930803 \tanh{\left(- 0.188554628480121 T + 1.59812971896782 wl + 3.23722346609715 \right)} + 0.382027155229118 \tanh{\left(0.00376833956710079 T - 1.83996290784523 wl + 1.92716453667994 \right)} + 0.176466325700892 \tanh{\left(0.0104932046673767 T - 2.29046874142725 wl + 6.25742036919415 \right)} - 0.197570741237772 \tanh{\left(0.0621753889302001 T + 1.18170031961267 wl - 4.11549520546119 \right)} + 0.410408787707612 \tanh{\left(0.0954942061730391 T - 2.12122642927607 wl + 1.30069605474516 \right)} - 0.221116745772452 \tanh{\left(0.131097420255736 T - 2.5087048580105 wl + 0.931596247885465 \right)} + 2.45595619103672\)
Python Function¶
def neff(
wl: sax.FloatArrayLike,
T: sax.FloatArrayLike,
) -> sax.FloatArray:
return jnp.asarray(-0.110410401433459*jnp.tanh(-0.600357657504306*T + 1.54715360005578*wl + 14.2374537107991) + 0.179689272617619*jnp.tanh(-0.457454375350961*T + 1.25572670087348*wl + 10.620188722182) + 0.106318749624365*jnp.tanh(-0.256236159848255*T + 1.67010341829345*wl + 5.12134478213462) - 0.0894625680724589*jnp.tanh(-0.226044726286232*T + 0.789923296781523*wl + 4.70141005719755) - 0.151500001930803*jnp.tanh(-0.188554628480121*T + 1.59812971896782*wl + 3.23722346609715) + 0.382027155229118*jnp.tanh(0.00376833956710079*T - 1.83996290784523*wl + 1.92716453667994) + 0.176466325700892*jnp.tanh(0.0104932046673767*T - 2.29046874142725*wl + 6.25742036919415) - 0.197570741237772*jnp.tanh(0.0621753889302001*T + 1.18170031961267*wl - 4.11549520546119) + 0.410408787707612*jnp.tanh(0.0954942061730391*T - 2.12122642927607*wl + 1.30069605474516) - 0.221116745772452*jnp.tanh(0.131097420255736*T - 2.5087048580105*wl + 0.931596247885465) + 2.45595619103672)
# copied from the output above
def neff(
wl: sax.FloatArrayLike,
T: sax.FloatArrayLike,
) -> sax.FloatArray:
return jnp.asarray(-0.111191802586104*jnp.tanh(-0.600317366952325*T + 1.54846504944971*wl + 14.2272048582564) + 0.180757975443552*jnp.tanh(-0.457411832080669*T + 1.25568437816402*wl + 10.614732777431) + 0.107327818114191*jnp.tanh(-0.25649703408395*T + 1.67111893010048*wl + 5.1256823674601) - 0.0898577799557729*jnp.tanh(-0.225850362933715*T + 0.790158764514527*wl + 4.69186447361556) - 0.151898347397017*jnp.tanh(-0.189879669993807*T + 1.59611170859548*wl + 3.27735371452777) + 0.383908389244572*jnp.tanh(0.00369014645440011*T - 1.83824748809467*wl + 1.93052206415554) + 0.177426903448328*jnp.tanh(0.0102029156991074*T - 2.29191621436434*wl + 6.26841403281157) - 0.198500270340145*jnp.tanh(0.061876158041826*T + 1.18462265069521*wl - 4.11404913741124) + 0.412859497897128*jnp.tanh(0.0953365220520588*T - 2.12223348019723*wl + 1.30945166982991) - 0.222415152240564*jnp.tanh(0.131198421445111*T - 2.50971948440061*wl + 0.935123955664435) + 2.46005737019216) # fmt: skip

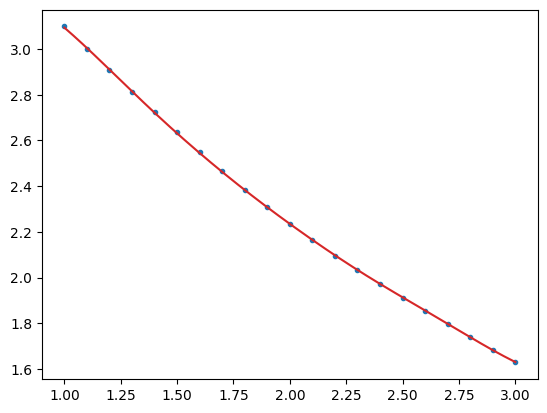

T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = neff(wl, T)
plt.plot(wl, neff_pred, color="C3")
plt.show()
