Surface Models

Let's build some analytical surface models using MEOW and SAX

import json
from hashlib import md5
from pathlib import Path

import jax.numpy as jnp
import matplotlib.pyplot as plt
import meow as mw
import numpy as np
import pandas as pd
import xarray as xr
from tqdm.notebook import tqdm

import sax

Silicon Refractive index

Let's create a rudimentary silicon refractive index model:

Note

This model is not based on a realistical model.

def silicon_index(wl, T):
    """A rudimentary silicon refractive index model with temperature dependence"""
    a, b = 0.2411478522088102, 3.3229394315868976
    dn_dT = 0.00082342342  # probably exaggerated
    return a / wl + b + dn_dT * (T - 25.0)

wls = np.linspace(1.0, 3.0, 21)

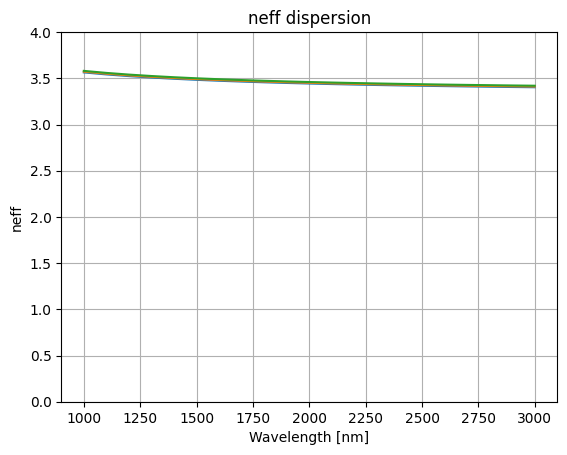

for T in [25.0, 35.0, 45.0]:
    plt.plot(1e3 * wls, silicon_index(wls, T))
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()

Waveguide Modes

NOTE: this example shows a simple 1D linear interpolated neff model vs wavelength. To see an example of a grid interpolation over wavelength and width, see the 'Layout Aware' example.

We can use meow to calculate the modes in our waveguide.

def find_waveguide_modes(
    wl: float = 1.55,
    T: float = 25.0,
    n_box: float = 1.4,
    n_clad: float = 1.4,
    n_core: float | None = None,
    t_slab: float = 0.1,
    t_soi: float = 0.22,
    w_core: float = 0.45,
    du=0.02,
    n_modes: int = 10,
    cache_path: str | Path = "modes",
    *,
    replace_cached: bool = False,
):
    length = 10.0
    delta = 10 * du
    env = mw.Environment(wl=wl, T=T)
    if n_core is None:
        n_core = silicon_index(wl, T)
    cache_path = Path(cache_path).resolve()
    cache_path.mkdir(exist_ok=True)
    fn = f"{wl=:.2f}-{T=:.2f}-{n_box=:.2f}-{n_clad=:.2f}-{n_core=:.5f}-{t_slab=:.3f}-{t_soi=:.3f}-{w_core=:.3f}-{du=:.3f}-{n_modes=}.json"
    path = cache_path / fn
    if not replace_cached and path.exists():
        return [mw.Mode.model_validate(mode) for mode in json.loads(path.read_text())]

    # fmt: off
    m_core = mw.SampledMaterial(name="slab", n=np.asarray([n_core, n_core]), params={"wl": np.asarray([1.0, 2.0])}, meta={"color": (0.9, 0, 0, 0.9)})
    m_clad = mw.SampledMaterial(name="clad", n=np.asarray([n_clad, n_clad]), params={"wl": np.asarray([1.0, 2.0])})
    m_box = mw.SampledMaterial(name="box", n=np.asarray([n_box, n_box]), params={"wl": np.asarray([1.0, 2.0])})
    box = mw.Structure(material=m_box, geometry=mw.Box(x_min=- 2 * w_core - delta, x_max= 2 * w_core + delta, y_min=- 2 * t_soi - delta, y_max=0.0, z_min=0.0, z_max=length))
    slab = mw.Structure(material=m_core, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0.0, y_max=t_slab, z_min=0.0, z_max=length))
    clad = mw.Structure(material=m_clad, geometry=mw.Box(x_min=-2 * w_core - delta, x_max=2 * w_core + delta, y_min=0, y_max=3 * t_soi + delta, z_min=0.0, z_max=length))
    core = mw.Structure(material=m_core, geometry=mw.Box(x_min=-w_core / 2, x_max=w_core / 2, y_min=0.0, y_max=t_soi, z_min=0.0, z_max=length))

    cell = mw.Cell(structures=[box, clad, slab, core], mesh=mw.Mesh2D( x=np.arange(-2*w_core, 2*w_core, du), y=np.arange(-2*t_soi, 3*t_soi, du) ), z_min=0.0, z_max=10.0)
    cross_section = mw.CrossSection.from_cell(cell=cell, env=env)
    modes = mw.compute_modes(cross_section, num_modes=n_modes)
    # fmt: on

    path.write_text(json.dumps([json.loads(mode.model_dump_json()) for mode in modes]))

    return modes

We can now easily calculate the modes of a strip waveguide:

modes = find_waveguide_modes(wl=1.5, T=25.0, replace_cached=False)

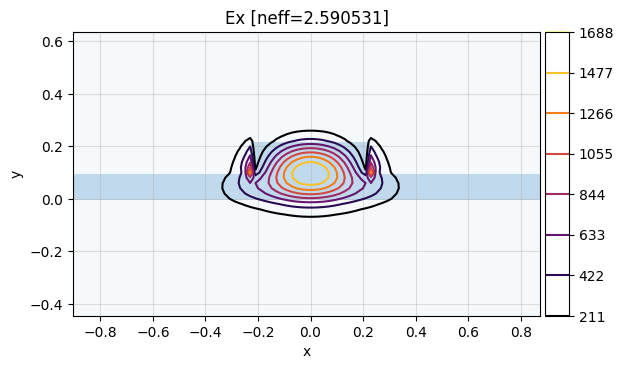

mw.visualize(modes[0])

def calculate_neffs(wls, Ts, *, replace_cached=False):
    key = md5(wls.tobytes() + b"\x00" + Ts.tobytes()).hexdigest()[:8]
    path = Path("modes").resolve() / f"{key}.csv"
    if not replace_cached and path.exists():
        return pd.read_csv(path)
    neffs = np.zeros((wls.shape[0], Ts.shape[0]))
    for i, wl in enumerate(pb := tqdm(wls)):
        for j, T in enumerate(Ts):
            pb.set_postfix(T=f"{T:.2f}C")
            modes = find_waveguide_modes(wl=wl, T=T, w_core=0.5, replace_cached=False)
            neffs[i, j] = np.real(modes[0].neff)

    xarr = xr.DataArray(data=neffs, coords={"wl": wls, "T": Ts})
    df = sax.to_df(xarr, target_name="neff")
    df.to_csv(path, index=False)
    return df

wls = np.linspace(1.0, 3.0, 21)
Ts = np.linspace(25, 35, 11)
df = calculate_neffs(wls, Ts, replace_cached=False)

  0%|          | 0/21 [00:00<?, ?it/s]

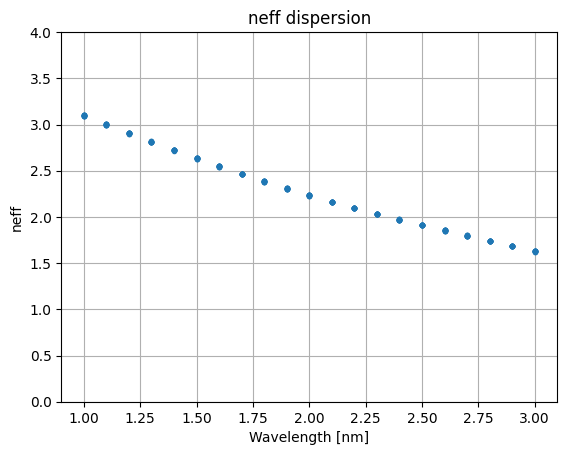

plt.plot(df.wl, df.neff, ls="none", marker=".")
plt.xlabel("Wavelength [nm]")
plt.ylabel("neff")
plt.title("neff dispersion")
plt.grid(True)
plt.ylim(0, 4)
plt.show()

result = sax.fit.neural_fit(df, targets=["neff"], num_epochs=3000)
surface_model = result["predict_fn"]

  0%|          | 0/3000 [00:00<?, ?it/s]

Prediction

T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = surface_model(jnp.stack([wl, T], axis=1))
plt.plot(wl, neff_pred)
plt.show()

Equation

sax.fit.neural_fit_equations(result)["neff"]

\(\displaystyle - 0.111191802586105 \tanh{\left(- 0.600317366952318 T + 1.54846504944972 wl + 14.2272048582559 \right)} + 0.180757975443548 \tanh{\left(- 0.457411832080673 T + 1.25568437816403 wl + 10.6147327774309 \right)} + 0.107327818114191 \tanh{\left(- 0.256497034083946 T + 1.67111893010052 wl + 5.12568236745975 \right)} - 0.0898577799557711 \tanh{\left(- 0.225850362933711 T + 0.790158764514508 wl + 4.69186447361538 \right)} - 0.151898347397001 \tanh{\left(- 0.189879669993817 T + 1.59611170859546 wl + 3.27735371452787 \right)} + 0.383908389244576 \tanh{\left(0.00369014645440291 T - 1.83824748809476 wl + 1.93052206415558 \right)} + 0.177426903448325 \tanh{\left(0.0102029156991024 T - 2.29191621436436 wl + 6.26841403281176 \right)} - 0.198500270340146 \tanh{\left(0.0618761580418194 T + 1.18462265069523 wl - 4.11404913741111 \right)} + 0.412859497897127 \tanh{\left(0.0953365220520541 T - 2.12223348019721 wl + 1.30945166983 \right)} - 0.222415152240564 \tanh{\left(0.131198421445116 T - 2.50971948440059 wl + 0.935123955664259 \right)} + 2.46005737019214\)

Python Function

sax.fit.write_neural_fit_functions(result, with_imports=False)

def neff(
    wl: sax.FloatArrayLike,
    T: sax.FloatArrayLike,
) -> sax.FloatArray:
    return jnp.asarray(-0.111191802586105*jnp.tanh(-0.600317366952318*T + 1.54846504944972*wl + 14.2272048582559) + 0.180757975443548*jnp.tanh(-0.457411832080673*T + 1.25568437816403*wl + 10.6147327774309) + 0.107327818114191*jnp.tanh(-0.256497034083946*T + 1.67111893010052*wl + 5.12568236745975) - 0.0898577799557711*jnp.tanh(-0.225850362933711*T + 0.790158764514508*wl + 4.69186447361538) - 0.151898347397001*jnp.tanh(-0.189879669993817*T + 1.59611170859546*wl + 3.27735371452787) + 0.383908389244576*jnp.tanh(0.00369014645440291*T - 1.83824748809476*wl + 1.93052206415558) + 0.177426903448325*jnp.tanh(0.0102029156991024*T - 2.29191621436436*wl + 6.26841403281176) - 0.198500270340146*jnp.tanh(0.0618761580418194*T + 1.18462265069523*wl - 4.11404913741111) + 0.412859497897127*jnp.tanh(0.0953365220520541*T - 2.12223348019721*wl + 1.30945166983) - 0.222415152240564*jnp.tanh(0.131198421445116*T - 2.50971948440059*wl + 0.935123955664259) + 2.46005737019214)

# copied from the output above
def neff(
    wl: sax.FloatArrayLike,
    T: sax.FloatArrayLike,
) -> sax.FloatArray:
    return jnp.asarray(-0.111191802586104*jnp.tanh(-0.600317366952325*T + 1.54846504944971*wl + 14.2272048582564) + 0.180757975443552*jnp.tanh(-0.457411832080669*T + 1.25568437816402*wl + 10.614732777431) + 0.107327818114191*jnp.tanh(-0.25649703408395*T + 1.67111893010048*wl + 5.1256823674601) - 0.0898577799557729*jnp.tanh(-0.225850362933715*T + 0.790158764514527*wl + 4.69186447361556) - 0.151898347397017*jnp.tanh(-0.189879669993807*T + 1.59611170859548*wl + 3.27735371452777) + 0.383908389244572*jnp.tanh(0.00369014645440011*T - 1.83824748809467*wl + 1.93052206415554) + 0.177426903448328*jnp.tanh(0.0102029156991074*T - 2.29191621436434*wl + 6.26841403281157) - 0.198500270340145*jnp.tanh(0.061876158041826*T + 1.18462265069521*wl - 4.11404913741124) + 0.412859497897128*jnp.tanh(0.0953365220520588*T - 2.12223348019723*wl + 1.30945166982991) - 0.222415152240564*jnp.tanh(0.131198421445111*T - 2.50971948440061*wl + 0.935123955664435) + 2.46005737019216)  # fmt: skip

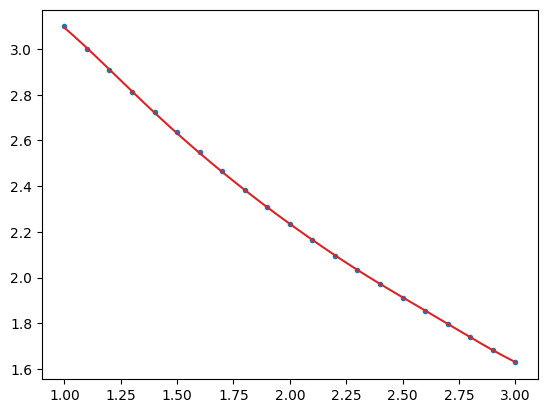

T = 31.0
df_sel = df.query(f"T=={T:.1f}")
plt.plot(df_sel.wl, df_sel.neff, ls="none", marker=".")
wl = jnp.linspace(df_sel.wl.min(), df_sel.wl.max(), 201)
T = T * jnp.ones_like(wl)
neff_pred = neff(wl, T)
plt.plot(wl, neff_pred, color="C3")
plt.show()
